Accurate distance measurement at the press of a button!

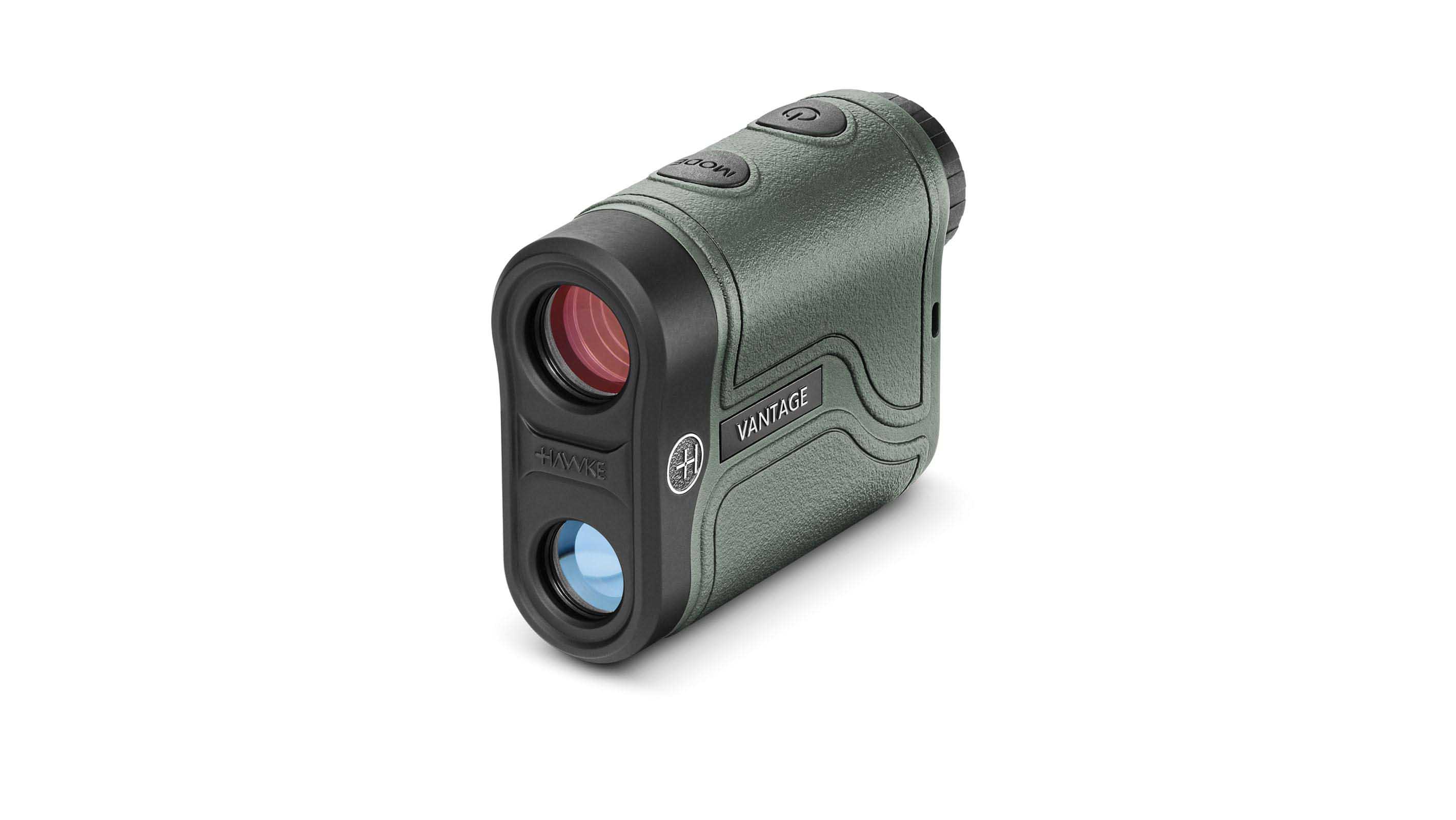

Hawke Vantage Laser Range Finders are designed to deliver highly accurate distance measurements with the press of a button. They are ergonomically constructed to fit comfortably in your hand with easy access to both of the control buttons.
Its range finding capabilities include: Distance (inc. continuous scan mode), Rain, Hunt, Horizontal Distance and Angle modes.
- Fully Multi-Coated optical system — BK-7 prisms
- 6x magnification and an adjustable dioptre
- High light transmission with true colour optics
- Wide Angle optical system
- Measure distances accurate to +/- 1 metre/yard
- Auto shut off battery save feature
- Lightweight and compact construction
- Ergonomically designed to fit in your hand
Nitrogen purged. Waterproof. Fog Proof.
Hawke Two Year Warranty.
Operating Modes
STANDARD MODE
Standard mode measures the straight line distance to the target you are aiming at. It is measured to the nearest tenth of a yard/meter.
When there is nothing displayed in the targeting modes area of the display (to the right or underneath the distance), you are in Standard mode.
Active Scan: If you hold the POWER button while in Standard mode the range finder will continuously scan so you can move around and get constant updates of the distance.
RAIN MODE
Rain mode measures the straight line distance to the target, but ignores any interference from falling raindrops. When range finding in Rain mode, the Horizontal Distance will also be shown on the lower distance readout line.
HUNT MODE
Hunt mode measures the straight line distance to the target, but ignores any interference from long grass or brush that stands between you and the target, ideal for measuring the distance to a deer that's walking through long grass or woodland.
When Hunt mode is triggered the Hunt mode icon will have a circle around it. When range finding in Hunt mode, the Horizontal Distance will also be shown on the lower distance readout line.
HORIZONTAL DISTANCE 'HD' MODE
HD mode measures the horizontal distance to the target. The straight line distance is shown on the upper distance readout and the HD component is shown on the lower distance readout. This is especially useful for measuring the bullet compensated distance to a target.
If shooting at high angles in the mountains, firing airguns that have loopy trajectories, or shooting bows from a tree stand, HD mode gives a more realistic distance for use when calculating holdover aim points.
ANGLE MODE
Angle mode measures the angle of projection. It is measured to the nearest tenth of a degree. The straight line distance is shown on the upper distance readout and the angle measurement is shown on the lower distance readout. When aiming downhill a minus symbol will appear to the left of the angle display.
1
2
3
4
4
5
6
7
High TX LCD
- Aim point with horizontal and vertical guides.
- Measuring units (M = meters, Y = yards)
- Distance readout
- Targeting modes
- Horizontal readout
- Laser emission signal
- Low battery indicator
Product Type
Laser Range Finder
Product Range
Vantage 600
Objective Lens
0.8
Magnification
6x
Scope Tube
21
Field of View (ft@100yds)
420
Field of View (m@100m)
140
Eye Relief (in)
0.7
Eye Relief (mm)
18
Lens Coating
Multi Anti-Reflective
Modes
Standard // Horizon Distance // Angle // Rain // Hunt
Display
High TX LCD
Range (yds)
7 - 656
Range (m)
6 - 600
Accuracy (yds)
±1
Accuracy (m)
±1
Battery
3V CR2
Angle Range (°)
90
WA Optical System (°)
8
Operating Temp (°F)
14°F to 104°F
Operating Temp (°C)
-10°C to 40°C
Waterproof Rating
IPX5
Length (in)
3.8
Length (mm)
97
Height (mm)
74
Height (in)
2.9
Weight (g)
170
Weight (oz)
6
